Pneumatic Electrical Rotary Union Joint For USB HDMI VGA Signal Transmisstion

Name: Pneumatic Electrical Rotary Union Joint For USB HDMI VGA Signal Transmisstion
Brand: senring
Price: 1 USD

Brand Name : senring

Model Number : 31002006

Certification : CE,ISO9001,ROHS

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Payment Terms : T/T,paypal or credit card

Packaging Details : carton

Passages : 2 passages

Max. Operating Pressure : Positive PPositive Pressure 1Mpa, Vacuum -90kParessure 1Mpa, Vacuum -90kPa

Pipe Size : 6~8mm pipe, G1/8" Port

torque : <0.2N.m

Max. Operating Speed : 250RPM continously, 1000RPM intermittently

Lead wire length : standard 300mm （can be customized）

Contact Now

31002006 Series 2 Passage Hollow Shaft Rotary Unions,Can Combine To Transfer Electrical Power & Signal,G1/8" port,Support 6~8mm Pipes, standard hollow shaft size 100mm.

Features of Hollow Shaft Rotary Unions

1.Can be installed with mechanical arm to rotate together ;

2.Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;

3.360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;

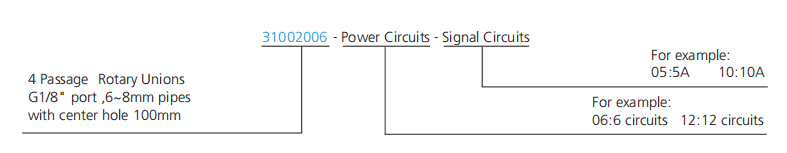

Part no. description

Pneumatic Electrical Rotary Union Joint For USB HDMI VGA Signal Transmisstion

Drawing

Pneumatic Electrical Rotary Union Joint For USB HDMI VGA Signal Transmisstion

Standard model list

Model	Passages	Port Size	Pipe Size
31002006	2 Passages	G1/8"	6∼8mm

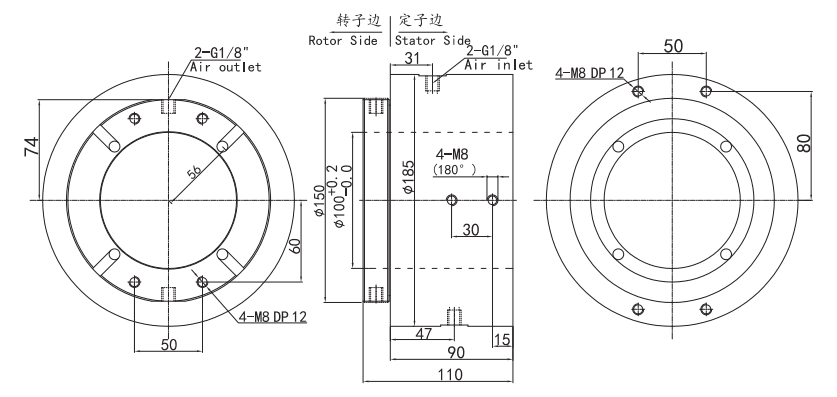

Drawing

Pneumatic Electrical Rotary Union Joint For USB HDMI VGA Signal Transmisstion

Standard model list

Part NO.	Passages	Port Size	Pipe Size	Power Circuits(10A)	Signal Circuits(5A)	Length L(mm)
31002006-0605	2 Passages	G1/8"	6∼8mm	0	6	64
31002006-0610	2 Passages	G1/8"	6∼8mm	6	0	64
31002006-1205	2 Passages	G1/8"	6∼8mm	0	12	88
31002006-1210	2 Passages	G1/8"	6∼8mm	12	0	88
31002006-1805	2 Passages	G1/8"	6∼8mm	0	18	112
31002006-1810	2 Passages	G1/8"	6∼8mm	18	0	112
31002006-2405	2 Passages	G1/8"	6∼8mm	0	24	136
31002006-2410	2 Passages	G1/8"	6∼8mm	24	0	136

Technical Specification of 31002006 series slip ring

Passages	2 passages
Pipe Size	6~8mm pipe, G1/8" Port
Mechanical Data
spec.	data
Working life	10millions for ref(depends on working conditions)
Max. Operating Speed	250RPM continously, 1000RPM intermittently
Working temp.	-30°C~80°C
Work humidity	0~85% RH
Contact Materials	Precious Metal
Housing Material	aluminum alloy
IP Grade	IP51

Max. Operating Pressure	Positive Pressure 1Mpa, Vacuum -90kPa
torque	<0.2N.m
Electrical Data
spec.	data
	Power	Signal
Voltage range	0~440VAC/VDC	0~440VAC/VDC
Insulation resistance	<500MΩ/300VDC	<500MΩ/300VDC
Lead wire spec.	AWG17# Silver-plated teflon wire	AWG22# Silver-plated teflon wire
Lead wire length	standard 300mm (can be customized)
Insulation resistance	500VAC@50Hz,6s
Electrical noise	<0.01Ω
